Through Wall Camera (TWC)
The Through Wall Camera (TWC) is a precision surveillance camera that enables operators to gain covert visual access to rooms and areas through drywall or any small opening. The TWC can be deployed in multiple scenarios. Gain covert visual access by inserting the camera probe under door cracks or through narrow gaps in walls or structures.
The TWC ultra-miniature camera is encased in a 2mm stainless steel probe. The TWC Wall Punch, Clearing Drill, and Camera Probe enable operators to discretely bore through two layers of drywall to obtain covert, wide angle video surveillance of adjacent rooms.
Two length options are available, the standard length option is 8 inches long and designed for deployment in residential properties. The longer version is 17 inches long and suited for wider wall construction typically found in commercial buildings.
The 1.0 inch AMOLED eyepiece (optional) on the TWC Body allows for quick viewing and doesn’t require any additional monitors. Real-time video can also be streamed wirelessly via the internal WiFi radio or by a hardwired connection to the Tactical Accessory Port (TAP) on the TWC. Video can be viewed on any Tactical Electronics’ Monitor, on an Android device via the TE View app or ATAK.
FEATURES:
- Camera Probe: 2mm Stainless Steel Tube on 6ft cable
- Tools: Camera Probe + Wall Punch + Clearing Drill
- Two Length Options: 8 inches and 17 inches
- Eyepiece: 1.0in AMOLED color display (optional)
- Snapshot: Instantly record a still image of live video
- LCD Status screen: View system status information
- Backlit buttons: View push buttons in low light
- TAP: USB 2.0, 100Mbps Ethernet, 12VDC power-in
- Stream wireless or hardwired video to all TE Monitors
TWC TOOLS:

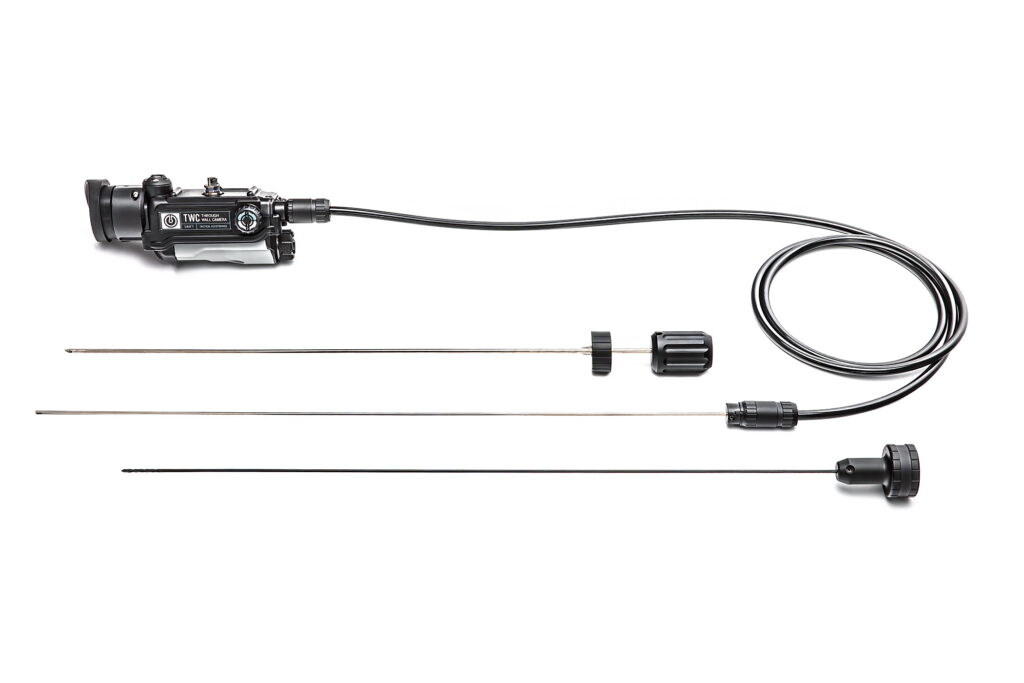

The TWC includes a set of three tools: a Wall Punch, a Clearing Drill, and a Camera Probe that is an ultra-miniature camera housed in a 2mm stainless steel probe. The TWC tools are designed to bore a 2mm hole through two layers of drywall and make discreet entry into adjacent rooms. First, embed the Wall Punch into the drywall and use the Clearing Drill to bore a hole through the wall and into the adjacent room. Remove the Clearing Drill from the Wall Punch and insert the Camera Probe, where it magnetically attaches, to discretely obtain a wide angle view of the room.
Tactical Accessory Port:
The TWC features a rugged, locking Tactical Accessory Port (TAP) that provides USB 2.0, 100Mbps Ethernet, and 12VDC power in. The TWC also features Stand-By Mode to help preserve battery life and provide a quick return to video within 10 seconds.
KIT CONTENTS:
- TWC Body (optional eyepiece)
- TWC Camera Probe (8in length or 17in length)
- TWC Wall Punch (8in length or 17in length)
- TWC Clearing Drill (8in length or 17in length)
